SMG SportChamp & attachments

// Information

SMG Rotating Brush Device

SMG Opposed Brush

SMG Rigid Brush

SMG Decompaction Head


The SMG SportChamp is the basic drive unit for maintaining and cleaning synthetic sports surfaces. The SportChamp is the multifunctional care and maintenance machine for your sports facility: in a single operation, the SportChamp levels the granular infill and eliminates contamination, loosening the infill and keeping the carpet fibres upright.

The various attachments available with the SportChamp models ensures that all types of synthetic sports surface (sand-filled, water-based, 3G) can be cleaned and maintained according to the manufacturer's instructions.

// Rotating Brush
Debris removal and deep-cleaning attachment for removing deep-seated dirt and decompacting the infill, by removing dust, debris and broken-down carpet fibres while lifting the carpet pile; working width 1.1m

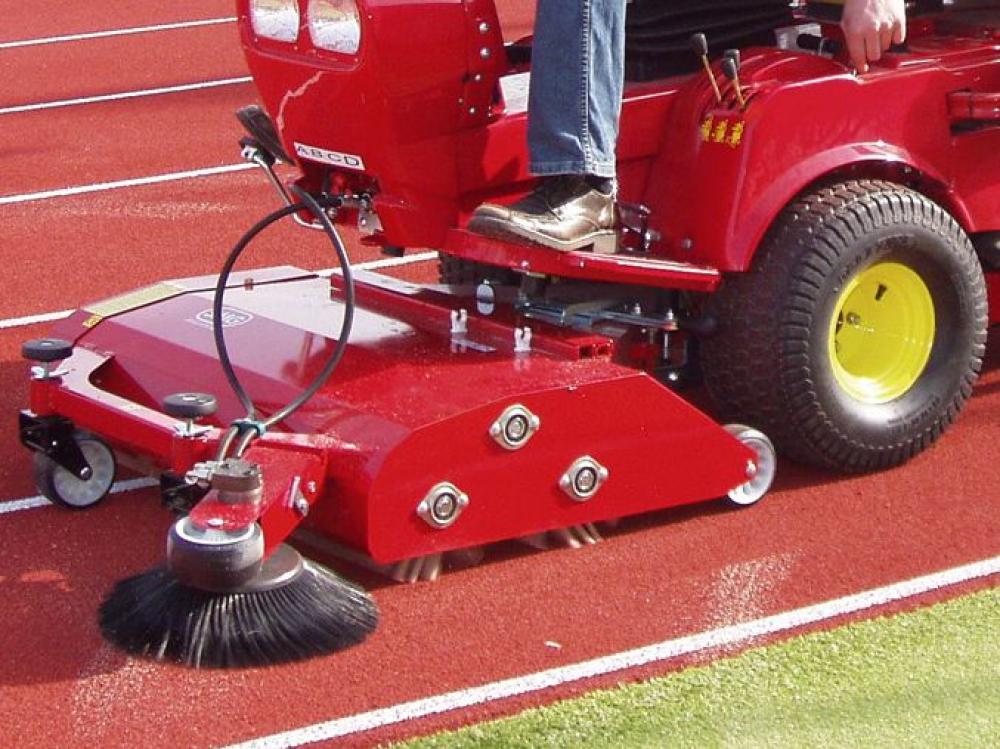

// Opposed Brush
2 opposed brushes for the cleaning and maintenance of non-filled artificial grass, running tracks and other synthetic sports surfaces; equipped with side broom, includes filter sieve for wet conditions; working width approx. 1m

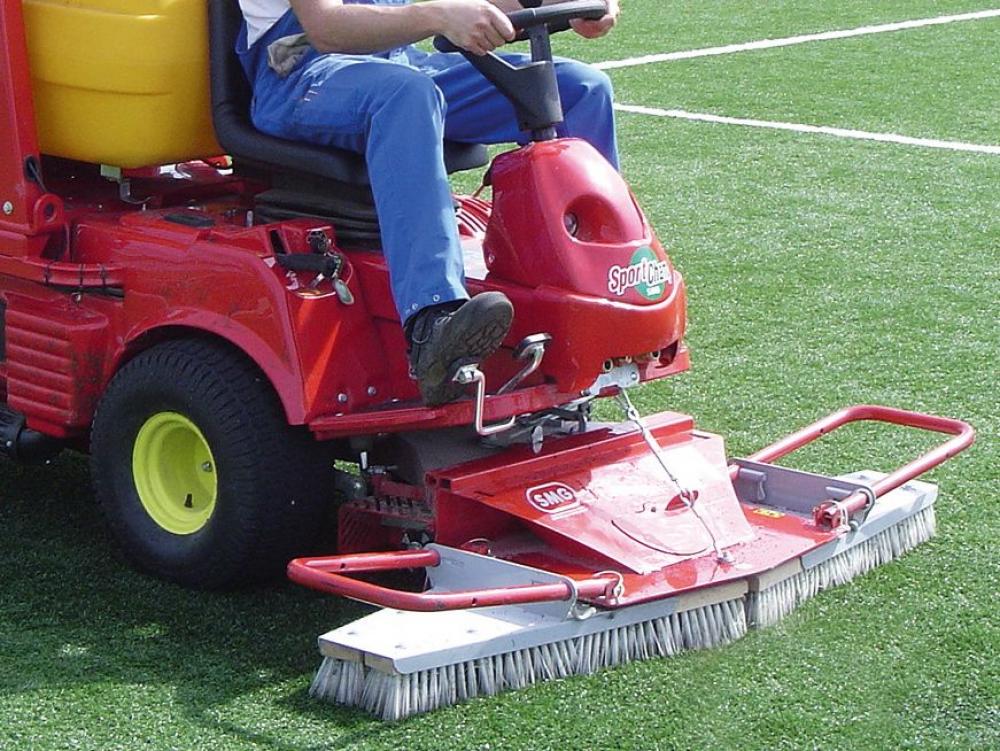

// Rigid Brush
Comes complete with a set of 'winged' brushes for the regular day-to-day maintnenance of the surface, simultaneously lifting and cleaning the fibre and infill by incorporating the vacuum for fine particles; working width approx. 1.6m

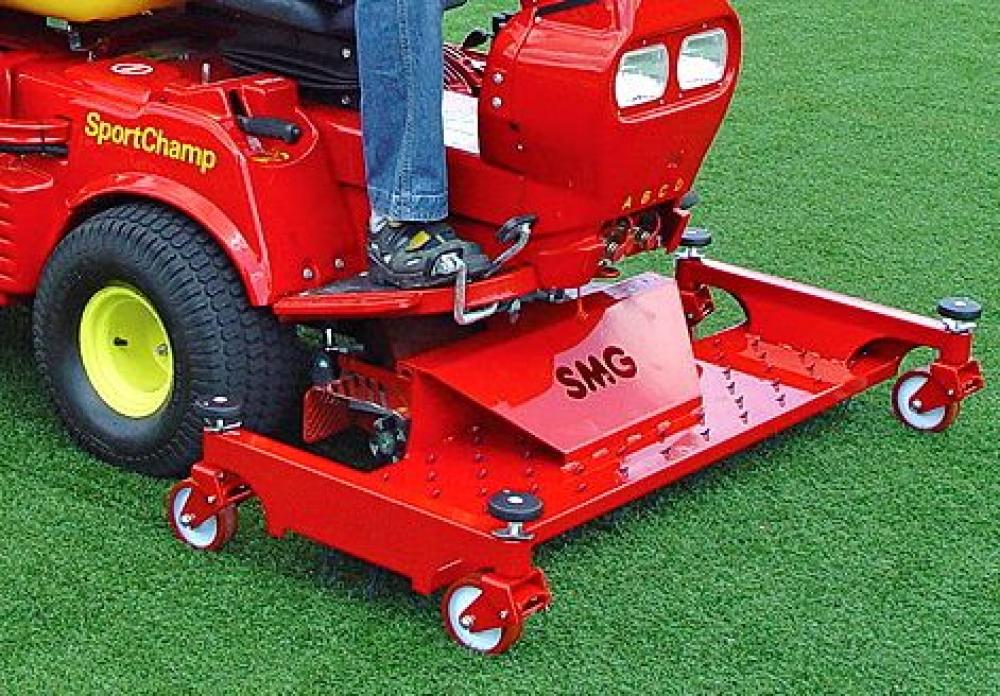

// Decompaction Head
For decompacting the infill and lifting the fibres; working width 1.3m (standard), 1.7m (large). 1.3m standard model also available as a ea attachment (includes lifting unit)

// Sweeping Brush
Rotating brush to remove dirt and debris from the
top of the surface and surrounding areas; hydraulically driven, can be angled from left to right; working width approx. 1.2m

// Sand / Rubber Spreading Device
For carrying out infill top-ups of sand / rubber filled surfaces; acpacity approx. 200kg - 300kg sand or 150kg - 260kg rubber; adjustable spread quantity; working width 1m

// Drag Brush Device
Single row of brushes for use on the rear of the SportChamp; working width 1.3m

// Spray Device
For spraying water/ weed / moss kill on artificial grass; 270 litre capacity; folding spray bar with 4 nozzles; working width 24m; hydraulically-driven water pump

// Vacuum Hose
For the removal of dirt and debris from the surrounds; hose 400cm; with handle and support for securing whilst driving

// Snowblower
Blower width up to 1.35m; adjustable blower height

// Snowplough
Hydraulically driven, can be angled from left to right; working width approx. 1.4m

// Sun Shield
Specially-designed canopy, offering an element of shade and shelter; available for both the standard and high-lift SportChamp machines
